Sourcing structural frames that arrive square, weld-clean, and ready to bolt together on site is harder than most catalogs admit. Albang Hardware builds modular welded steel frames in Suzhou, Jiangsu, China for procurement teams and engineers who need repeatable quality across large production runs. This page explains what we make, how we make it, and what drives cost—so you can specify with confidence.
What Are Modular Welded Steel Frames?
A modular welded steel frame is a load-bearing assembly built from steel columns, beams, and bracing that are cut, fitted, and joined by welding into discrete modules. Each module is engineered to connect with the next—usually through bolted end plates or welded connection nodes—so a complete structure ships as a kit of standardized parts rather than loose members.
For B2B buyers, the appeal is straightforward: predictable geometry, faster site assembly, and tighter dimensional control than field-welded construction. As part of our broader Custom Welding Services capability, these frames are produced under one roof, from raw section to coated module.
Welded Steel Modular Frames vs. Bolted & Prefabricated Alternatives

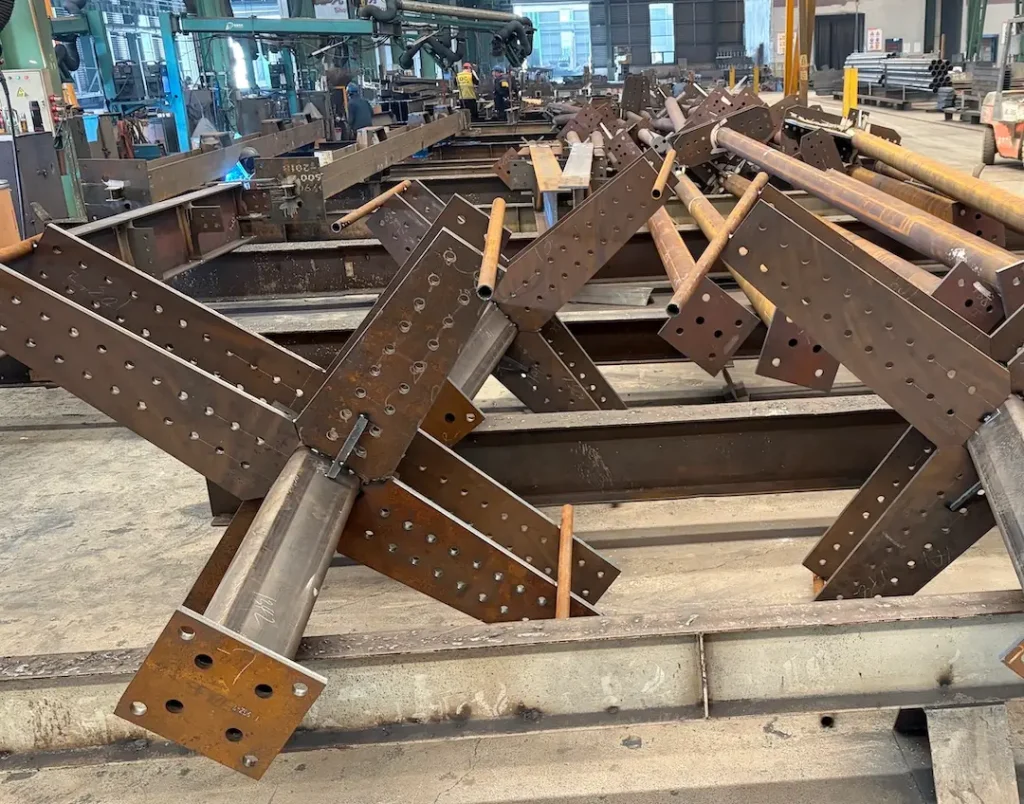

Welded steel frame modules deliver higher joint stiffness and a cleaner load path than purely bolted frames, which makes them well suited to dynamic loads and vibration-prone applications. Bolted connections, by contrast, ease transport and on-site adjustment. Most of our prefabricated welded steel frames combine both: shop-welded modules with bolted inter-module splices, giving you the rigidity of welding and the logistics of flat-pack delivery.
Key Components of Welded Steel Frame Modules
- Columns and beams — H-beam, I-beam, or hollow section (RHS/SHS) members sized to the load class.
- Bracing — diagonal angle or tube members that resist lateral and seismic forces.
- Connection nodes — welded gusset plates, base plates, and end plates that transfer load between members.
- Sub-assemblies — pre-welded sections (corners, ladders, platforms) that reduce on-site labor.
Types of Modular Steel Structural Frames We Manufacture
No two projects load a frame the same way, so we fabricate to drawing rather than from a fixed catalog. Common configurations include the following.

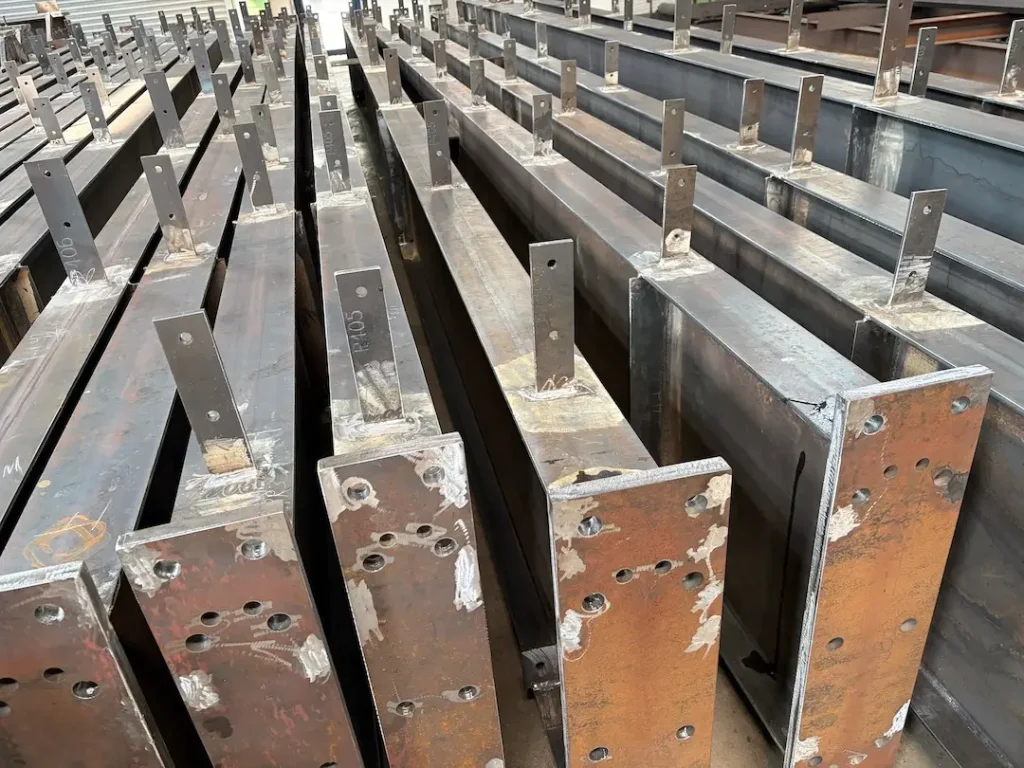

Portal & Column–Beam Welded Steel Frames
Single- and multi-span portal frames remain the workhorse for warehouses, workshops, and light industrial buildings. Clear spans typically range from 9 m to 36 m, with eave heights from 4 m to 12 m. Our column–beam modular steel structural frames use haunched welded connections to handle bending moments at the knee and ridge.
Box Module & Container-House Steel Frames
For modular building and prefab housing, we weld rigid box modules—typically based on a 3 m × 6 m or 3 m × 12 m footprint—that stack and bolt together. These frames are engineered for repeated lifting, stacking up to several stories, and over-the-road transport.
Industrial Platform, Mezzanine & Equipment Skid Frames
Mezzanines, access platforms, and equipment skids demand high point-load capacity and tight flatness tolerances. We routinely build skid bases that carry 5–30 tonnes of mounted equipment while staying within ±2 mm flatness across the bearing surface.
Custom & OEM/ODM Welded Steel Frame Modules
Most of our volume is custom-welded steel frames built to client specifications. Whether you supply finished drawings or a functional brief, our engineering team can develop, prototype, and serialize the design. Our dedicated Custom structural steel welding service supports OEM and ODM programs with documented weld procedures and first-article approval.
Materials & Steel Grades for Welded Modular Steel Structures
Material selection is where structural performance and corrosion life are decided, so we keep traceability from mill certificate to finished module.
Steel Grades
We commonly fabricate in Q235 and Q355 (GB), with equivalents in S275 and S355 (EN) or A36 and A992 (ASTM) on request. Q355 / S355 is the default, where higher yield strength reduces section weight and shipping cost. Mill test certificates accompany every batch.
Section Profiles
Standard profiles include hot-rolled H-beam and I-beam, rectangular and square hollow sections (RHS/SHS), circular hollow section (CHS), channels, angles, and plate from 3 mm to 40 mm. Wall thickness and section depth are matched to the calculated load case rather than over-specified, which keeps material cost in check.
Anti-Corrosion Coatings
Corrosion protection is selected for the service environment:
- Hot-dip galvanizing to ~85 µm for outdoor and marine-adjacent use.
- Powder coating over a zinc-rich primer for indoor and architectural finishes.
- Two-pack epoxy systems for chemical or high-humidity plants.
For projects that pair structural steel with architectural glazing, the same finishing line supports our Structural Glass Fittings range, so coated steel and stainless fittings can be color-matched and shipped together.
Welding & Fabrication Process for Steel Frame Modules
Consistency comes from process control, not heroics on the shop floor. Every module follows the same documented route.
Automated & Robotic Welding
We run MIG/MAG, submerged arc welding (SAW) for long fillet runs, and robotic welding cells for high-repeatability modules. Welders are qualified to ISO 9606 / AWS D1.1, and weld procedures (WPS/PQR) are pre-approved for each joint type. Automated welding holds leg sizes and penetration far more consistently across a 500-unit run than manual work alone.
CNC Cutting, Drilling & Forming
Incoming sections are CNC-sawn, plasma- or laser-cut, drilled, and—where required—press-braked, before any tack welding begins. This front-loads accuracy: when parts are cut to ±1 mm, modules fit jigs cleanly and downstream welding distortion drops.

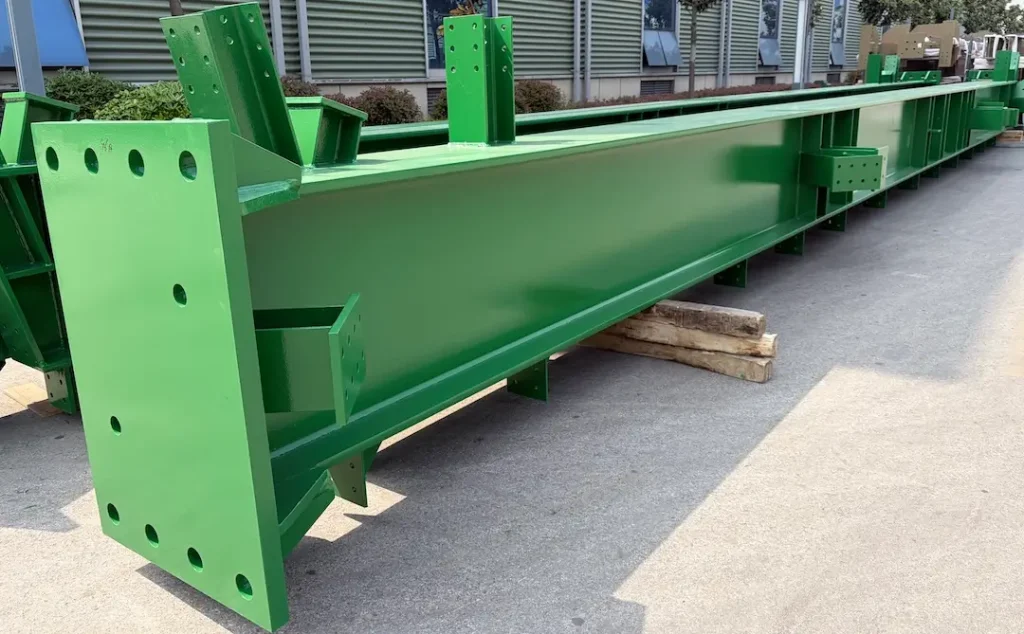

Surface Treatment & Shot Blasting
Before coating, frames are shot-blasted to Sa 2.5 to remove mill scale and create the anchor profile that coatings need to last. Skipping this step is the most common reason field coatings fail early, so we treat it as non-negotiable.
Quality Standards & Certifications
Export-ready QA is the reason most buyers stay with us after the first order. Quality is verified, not assumed.
Welding & Manufacturing Standards
Our fabrication aligns with EN 1090 execution classes, ISO 3834 welding quality requirements, AWS D1.1 for structural welds, and relevant GB standards. Production runs under an ISO 9001 quality system with full document control.
NDT, Dimensional & Load Testing
Inspection is staged across the build:
- Visual and dimensional checks against the approved drawing on every module.
- Non-destructive testing (NDT)—ultrasonic or magnetic particle—on critical welds per the agreed acceptance level.
- Load or proof testing where the application requires documented capacity.
Tolerance, Seismic & Wind-Load Ratings
Frames are engineered to the project’s seismic and wind-load case, with module-to-module tolerances typically held within ±2 mm so site assembly stays fast and shim-free.
Applications of Prefabricated Welded Steel Frames
The same core capability serves very different industries, which is why our welded steel frame modules show up across construction and equipment supply chains.
Modular Buildings & Steel-Framed Construction
Modular classrooms, site offices, dormitories, and multi-story modular housing rely on stackable box frames for speed and repeatability. Prefabricated welded steel frames cut on-site labor and shorten construction schedules considerably versus stick-built methods.
Industrial, Warehouse & Infrastructure Use Cases
Beyond buildings, our frames support conveyor structures, pipe racks, solar mounting systems, machine bases, and warehouse mezzanines. In each case the value is the same: a complete Structural Steel Fabrication package delivered to one specification, from one accountable supplier.
Why Choose Our China Steel Frame Factory
Specifications can be matched anywhere; reliable delivery at volume is harder to find.
Production Capacity & Lead Time
Our Suzhou facility processes a substantial monthly tonnage across multiple welding lines, with typical lead times of 3–6 weeks depending on volume, coating, and engineering complexity. Repeat orders with approved drawings run faster.
Custom Welded Steel Frames — OEM & ODM Manufacturing
For OEM and ODM buyers, we hold tooling and jigs, maintain part traceability, and manage revisions so your serialized product stays consistent order after order. First-article inspection reports are standard before any full run.
Export Experience & Global Shipping
We package for sea freight with module-level labeling and bundling that survives long transit. Documentation, HS coding, and container loading plans are prepared in-house, and we ship to North America, Europe, the Middle East, Australia, and Southeast Asia.
Pricing & Cost Drivers for Modular Welded Steel Frames
Buyers always ask for a number first, but a fair quote depends on the design. Rather than a misleading headline price, here are the factors that move it:
- Steel grade and tonnage — the single largest line item; Q355 / S355 vs. Q235 changes both weight and rate.
- Section complexity — heavy hollow sections and thick plate cost more to cut and weld than light rolled profiles.
- Welding content — robotic vs. manual welds, weld length, and NDT scope.
- Coating system — hot-dip galvanizing typically adds more than powder coat.
- Order volume — wholesale and repeat quantities lower the per-unit price meaningfully.
- Logistics — packing, container utilization, and destination port.
Send drawings or a brief and we will return a transparent, itemized quotation with volume-based price ranges—no guesswork, no hidden tooling surprises.
How to Order Custom Modular Welded Steel Frames
Getting from inquiry to delivery follows a clear path.
RFQ, Drawings & Engineering Support
Share drawings, a 3D model, or a functional brief. Our engineers review feasibility, flag value-engineering opportunities, and confirm material and weld specifications before quoting.
MOQ, Pricing & Lead Time
We accommodate both pilot batches and high-volume modular steel framing programs. Minimum order quantities are flexible for qualified B2B accounts, and pricing scales with volume.
Partner with a Reliable Manufacturer
Ready to specify with a factory that treats welded steel frame modules as a controlled, repeatable product? Contact Albang Hardware for a drawing review and a volume-based quotation.
